With the rapid development of military weaponry and correlative targeting and monitoring systems, ZnS is widely utilized in multi-spectral IR applications. Its relatively high transmittance through 3-5µm and 8-10µm enable ZnS being an ideal choice for multi-spectral applications. Further, within NIR and SWIR range, CLEARTRAN CVD ZnS can also be considered as indispensable alternative for optical designers.

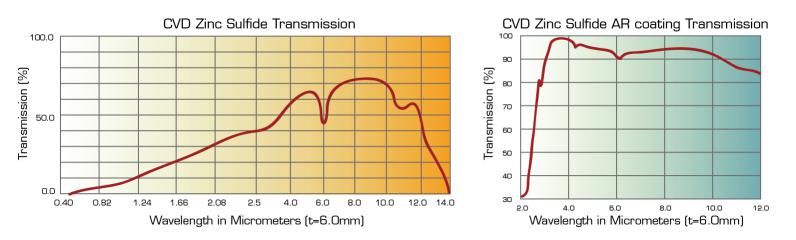

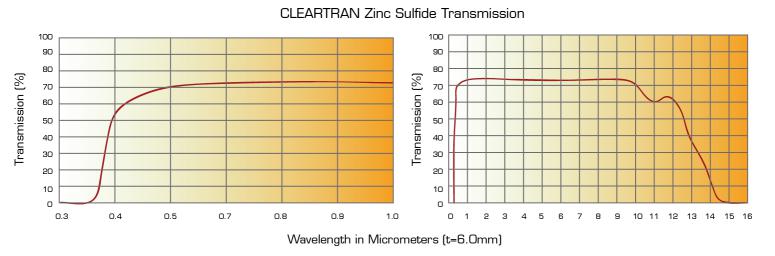

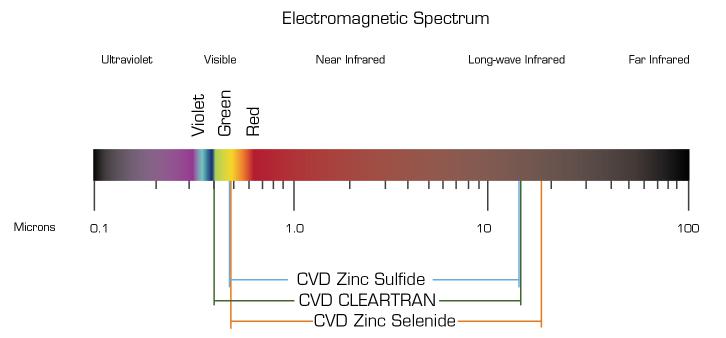

Spoptic uses CLEARTRAN ZnS multi-spectral material from ROHM&HAAS, typical material arrival lead time is 2 weeks. CLEARTRAN ZnS is modified by post-deposition hot isostatic process from CVD Zinc Sulfide, which contributes to transmittance from visible till far infrared ranges (0.35 to 14µm). Therefore, ZnS has become an imperative choice for IR lenses, laser windows and thermal imaging applications.
Spoptic’ ZnS lenses are especially suitable for systems that involve visible camera, mid-wave and long-wave detectors, and further laser rangefinders to designate targets. Our CLEARTRAN ZnS windows also can be used for external windows for particular sensor applications.
ZnS is comparatively soft cubic crystal in manufacturing, meaning it is easily to leave scratches in grinding and polishing processes, which lead to a complicated quality control of both cosmetic and surface accuracy. Spoptic invested heavily in ZnS component manufacturing capability improvement, enables our engineers master the optimal processing techniques in return helps Spoptic to meet customers’ expectation without compromise. ZnS aspheric lenses are also available for your application; please refer toIR Aspheric Lenses for more information. ZnS Dome optics is also available in our Domecategory.

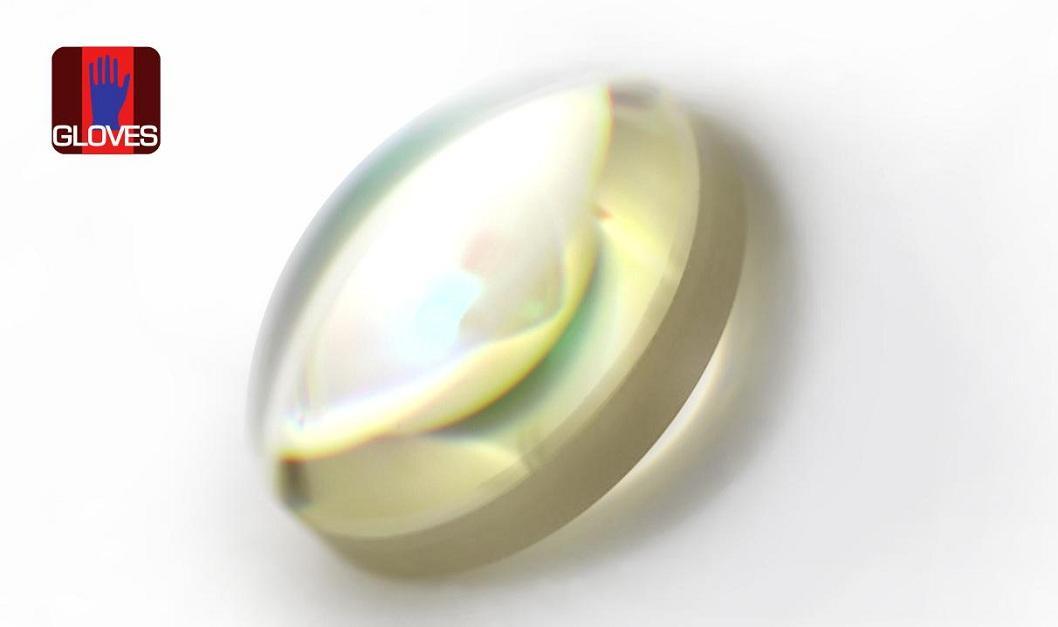

Our ZnS lenses are also available with AR coating according to specific requirement. Please take great care when handling, mounting and cleaning ZnS lenses, further, For your safety, please follow all proper precautions, including wearing gloves when handling these lenses and thoroughly washing your hands afterward.
Find out what we can help you with ZnS components today, we will be more than happy to evaluate your part and provide our professional suggestions from production perspective.
|
ZnS (CLEARTRAN) Refractive Index vs. Wavelength |
|||||||
|
Wavelength (µm) |
Index |
Wavelength (µm) |
Index |
Wavelength (µm) |
Index |
Wavelength (µm) |
Index |
|
0.4047 |
2.54515 |
0.6678 |
2.34033 |
1.5296 |
2.27191 |
9.000 |
2.21290 |
|
0.4358 |
2.48918 |
0.7065 |
2.33073 |
2.0581 |
2.26442 |
10.000 |
2.20084 |
|
0.4678 |
2.44915 |
0.7800 |
2.31669 |
3.000 |
2.25772 |
11.250 |
2.18317 |
|
0.4800 |
2.43691 |
0.7948 |
2.31438 |
3.500 |
2.25498 |
12.000 |
2.17101 |
|
0.5086 |
2.41279 |
0.8521 |
2.30659 |
4.000 |
2.25231 |
13.000 |
2.15252 |
|
0.5461 |
2.38838 |
0.8943 |
2.30183 |
4.500 |
2.24955 |
|
|
|
0.5876 |
2.36789 |
1.0140 |
2.29165 |
5.000 |
2.24661 |
|
|
|
0.6438 |
2.34731 |
1.1287 |
2.28485 |
8.000 |
2.22334 |
|
|
|
Zinc Sulfide |
COMMERCIAL GRADE |
FACTORY STANDARD |
PRECISION GRADE |
|
Diameter Tolerance(mm) |
+0/-0.20 |
+0/-0.10 |
+0/-0.025 |
|
Center Thickness(mm) |
±0.20 |
±0.15 |
±0.025 |
|
Radius (%) |
±2% |
±1.5% |
±1% |
|
Focal Length Tolerance (%) |
<3% |
<1.0% |
<1.0% |
|
Cosmetic(MIL-C-13830A) |
80-50 |
60-40 |
40-20 |
|
Figure Tolerance in λ(Pow/irreg) |
5 - 2 |
2 - 1/2 |
1 - 1/4 |
|
Centration (Arc min) |
5' |
3' |
1' |
|
Dia. To Thick Ratio |
9~50:1 |
||
|
Coating (R% avg) |
<2.0%@ VIS-SWIR , <1.5% @ 3~5µm or 8~12µm |
||
|
Materials |
CVD Zinc Sulfide and CLEARTRAN CVD ZnS |
||
