Sapphire is the best medium for spherical lenses that require a broad spectrum of light transmission and high optical clarity, especially in demanding applications such as laser system or working under harsh environmental conditions. With its excellent hardness, high thermal conductivity and resistance to chemical acids and alkalis, sapphire’s physical property is hard to machine, also requires unique polishing techniques.
At Spoptic, our technicians are able to deliver excellent accuracy exactly customers ask for, no matter the finished products are used through infrared wavelength or within UV range, our sapphire products suit following applications:

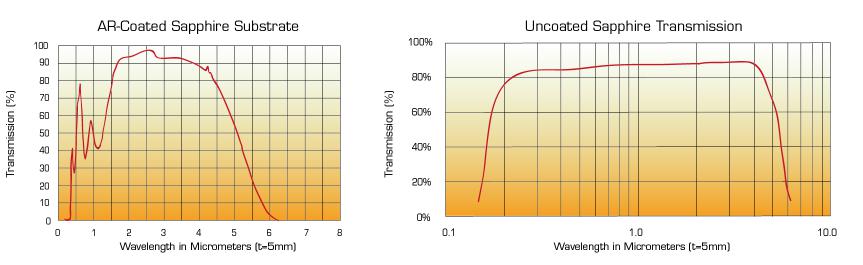

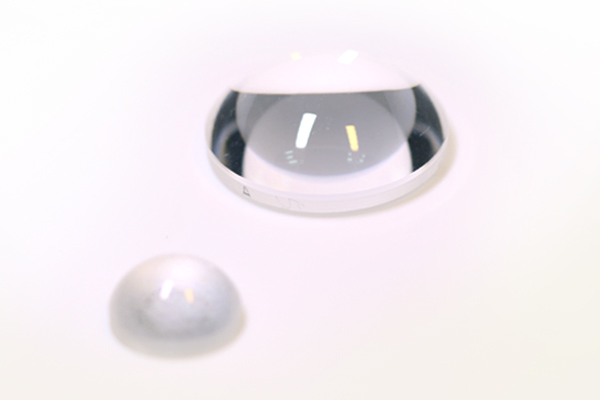

Our precision sapphire lenses are widely used in imaging optics, chemical and erosion resistance front surface optics as well as focusing lenses.
|
Sapphire Lenses |
COMMERCIAL GRADE |
FACTORY STANDARD |
PRECISION GRADE |
|
Diameter Tolerance(mm) |
+0/-0.30 |
+0/-0.25 |
+0/-0.10 |
|
Center Thickness(mm) |
±0.10 |
±0.05 |
±0.03 |
|
Radius (%) |
±2% |
±1.5% |
±1% |
|
Focal Length Tolerance (%) |
<5% |
<5% |
<3% |
|
Cosmetic(MIL-C-13830A) |
100-80 |
60-40 |
40-20 |
|
Figure Tolerance in λ(Pow/irreg) |
5 - 2 |
2 - 1 |
1 - 1/2 |
|
Centration (Arc min) |
5' |
5' |
3' |
|
Dia. To Thick Ratio |
9~50:1 |
||
|
Coating (T% avg) |
96% @ 3-5um/7-14um. 95% @ 4-12um |
||
|
Materials |
CZ Optical Grade Sapphire |
||
